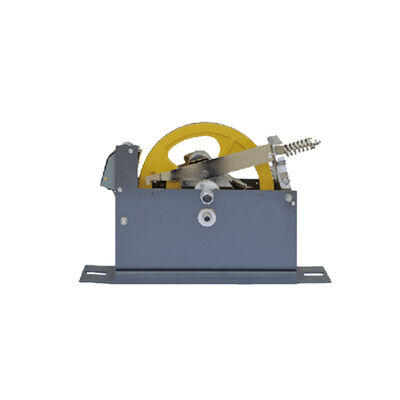

2.0、2.5m/s Speed Elevator Spares Elevator Overspeed Governor With Machine Room

2.0、2.5m/s Speed Elevator Spares Elevator Overspeed Governor With Machine Room
2.0、2.5m/s Speed Elevator Spares Elevator Overspeed Governor With Machine Room 2.0、2.5m/s Speed Elevator Spares Elevator Overspeed Governor With Machine Room

Grande immagine :  2.0、2.5m/s Speed Elevator Spares Elevator Overspeed Governor With Machine Room

Dettagli:
Luogo di origine: Cina
Marca: SUNNY
Certificazione: CE,ISO9001
Numero di modello: SN-SG-XSY300
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 pz
Prezzo: $ 170~185
Imballaggi particolari: SCATOLA IN LEGNO
Tempi di consegna: 7 giorni lavorativi
Termini di pagamento: Western Union, T/T, L/C, Paypal
Capacità di alimentazione: 5000 pezzi/mese

2.0、2.5m/s Speed Elevator Spares Elevator Overspeed Governor With Machine Room

descrizione
Nome: Limitatore di velocità dell'elevatore Tipo: Parti dell'ascensore
Velocità: 2,0,2,5 m/s Diametro della puleggia (mm): 300
Diametro della corda (mm): 8 Modello: Parti di automobili
Nome del prodotto: Limitatore di velocità dell'elevatore Prodotto: Limitatore di velocità dell'elevatore
utilizzo: Sollevare Voltaggio: AC220V
Forza di tensione della corda: 700-1500N
Evidenziare:

elevator overspeed governor with machine room

,

2.5m/s speed elevator governor

,

elevator safety components spares

2.0,2.5m/s Speed Elevator Spares Elevator Overspeed Governor With Machine Room

Product Features
Rated speed V(m/s) Rope tension force(N) Rope Dia.(mm) Sheave pitch Dia.(mm)
2.0,2.5 700-1500 Φ8 Φ300
Tension device Lifting height H(m) Tensioning force(N)
XS300Z.2A ≤120 480
XS300Z.2B 120<H≤150 600

2.0、2.5m/s Speed Elevator Spares Elevator Overspeed Governor With Machine Room 0

2.0、2.5m/s Speed Elevator Spares Elevator Overspeed Governor With Machine Room 12.0、2.5m/s Speed Elevator Spares Elevator Overspeed Governor With Machine Room 2

2.0、2.5m/s Speed Elevator Spares Elevator Overspeed Governor With Machine Room 3

FAQ
  1. Are the elevator wire ropes durable?

    The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.

  2. Is it dangerous for power failure suddenly during the elevator running?

    If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.

  3. Will us be hurt when it closed suddenly?

    In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.

  4. How the elevator running?

    Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.

  5. Is the escalator installation complicated?

    We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.

  6. Do you have any cerifications?

    Yes, we do with ISO9001 / CCC / CE Certificates for u.
