Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter Rope Diameter

Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter
Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter

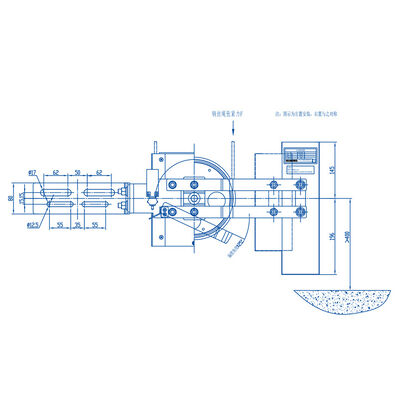

Grande immagine :  Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter Rope Diameter

Dettagli:
Luogo di origine: Cina
Marca: SUNNY
Certificazione: CE,ISO9001
Numero di modello: SN-ZJC
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 PZ
Prezzo: $20~30
Imballaggi particolari: In scatola di cartone
Tempi di consegna: 7 ~ 15 giorni
Termini di pagamento: L/C,T/T,Western Union
Capacità di alimentazione: un mese di 5000 pc

Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter Rope Diameter

descrizione
Nome: Dispositivo di tensionamento dell'elevatore Modello: Dispositivo di tensionamento dell'elevatore
usato: Parti di ascensore Certifcazione: GB
Tempo di garanzia: un anno Tipo: Dispositivo di tensionamento dell'elevatore
Prodotto: Dispositivo di tensionamento dell'elevatore Diametro primitivo della puleggia: 200/240 mm
Diametro della corda di filo: 6/6,3 mm Altezza del pavimento: H≤150





Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter Rope Diameter

Parameter table

Pulley pitch diameter(mm)

Wire rope diameter

Rope diameter

(mm)

Tension force

Tension

force

(N)

Building height(reference)

Installation

method

200/240 6/6.3 140N H≤60m Left/Right
180N 60
240N 90
300N 120



Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter 0



Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter 1



Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter 2



Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter 3



Elevator Spares Elevator Tensioning Device With 6/6.3mm Wire Rope Diameter  Rope Diameter 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
