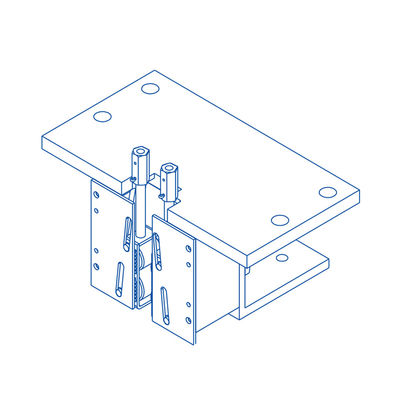

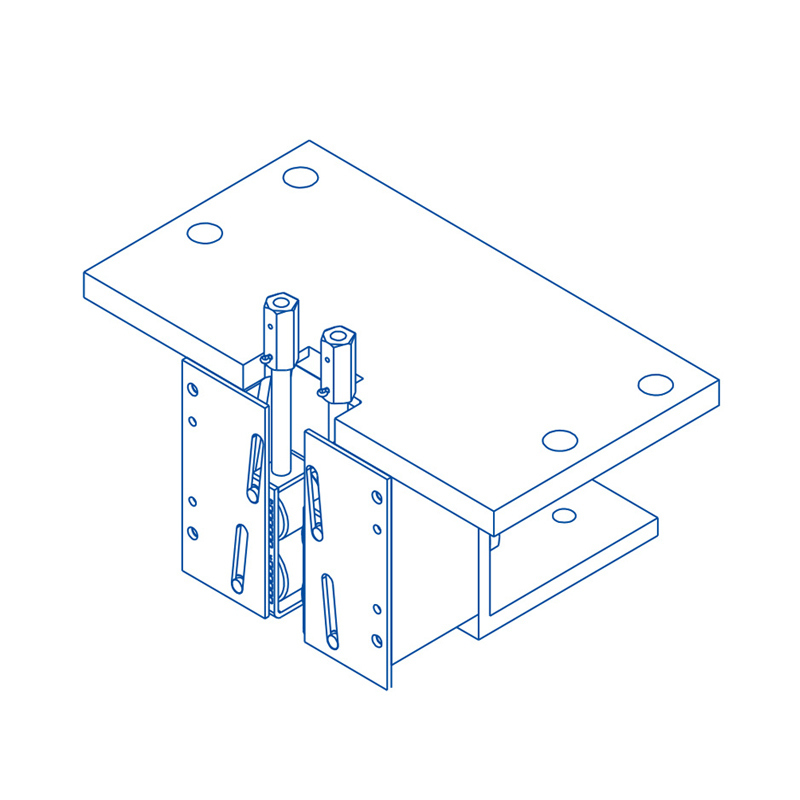

≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear

≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear
≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear

Grande immagine :  ≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear

Dettagli:
Luogo di origine: CINA
Marca: SUNNY
Certificazione: CE,ISO9001
Numero di modello: SN-SG-QS8A
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 pezzi
Prezzo: $50~100
Imballaggi particolari: In scatola di cartone
Tempi di consegna: 7 ~ 15 giorni
Termini di pagamento: L/C, T/T, Western Union
Capacità di alimentazione: un mese di 5000 pc

≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear

descrizione
Nome: Ingranaggio istantaneo di sicurezza Velocità nominale: ≤0.63m/s
P+q: ≤ 12000 kg Larghezza delle rotaie di guida: 15,88/16/19 mm
Modello: Ingranaggio di sicurezza dell'elevatore Usato: Parti di ascensore
Certifcazione: GB Tempo di garanzia: Un anno
Tipo: Ingranaggio istantaneo di sicurezza Prodotto: Ingranaggio istantaneo di sicurezza

≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear



Parameter Table



Product Model

Rated Speed

(m/s)

Acting Speed of Governor

(m/s)

System Mass

Permitted P+Q

(kg)

Rail Width

(mm)

Certification Rail Status

Overall Dimensions

(Fixed Installation) mm

Input Power

SN-SG-QS8 ≤0.63 ≤1.00 ≤12000 15.88/16 GB Dry/Lubricated 200x265x148
SN-SG-QS8A ≤0.63 ≤1.00 ≤13000 19 GB Dry/Lubricated 200x265x148



≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear 0



≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear 1



≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear 2≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
