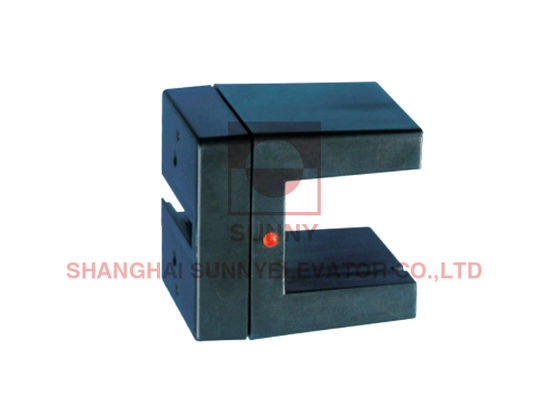

CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts

Certificazione
La CINA SHANGHAI SUNNY ELEVATOR CO.,LTD Certificazioni
La CINA SHANGHAI SUNNY ELEVATOR CO.,LTD Certificazioni
Rassegne del cliente
Il   di servizio è   idealizzato per facilitarne l'uso da parte dell'utente del   e il   dell'onestà del   è   il   la maggior parte del   attraente. È un piacere cooperare con voi

—— Millay

Sono ora online in chat

CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts

CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts
CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts

Grande immagine :  CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts

Dettagli:
Luogo di origine: Cina
Marca: SUNNY
Certificazione: CE,ISO9001
Numero di modello: ET126NS2P
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 pezzi
Prezzo: $3~6
Imballaggi particolari: Scatola di legno
Tempi di consegna: 7-15 giorni di lavorazione
Termini di pagamento: Western Union,T/T,L/C,Paypal
Capacità di alimentazione: un mese di 1000 pc

CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts

descrizione
Nome: Sensore di slot di livellamento dell'ascensore Tipo: Parti di ascensore
Imballaggio: imballaggio standard Voltaggio: 10...30VDC
Prodotto: Sensore di slot di livellamento dell'ascensore Modello: Sensore di slot di livellamento dell'ascensore
Produzione: PNP o NPN Corrente massima del carico: ≤200ma
Tempo di risposta: ≤1ms Limiti di temperatura: -20 ~+70 ° ℃



CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts



Feature Description

High-speed response type

With a repeatability accuracy of up to 0.5mm, the positioning is more precise

Infrared light above 10000% is on standby, dust-proof, smoke-proof and steam-proof

It is equipped with built-in output short-circuit protection, surge protection and overload protection circuits

Multi-functional output (NPN/PNP/NO/NC

Protection grade IP65(IEC)



Model ET126NS2P
Power supply

10...30VDC

Riple

<10%

Detected object Φ2.0  Above metal objects
Sensitivity adjustment fixed
Emission

Infrared(880nm)

Output

PNP or NPN

Max. Load Current

≤200mA

No Load Current

15mA or Less

Voltage Drop(Sensor On)

<2.5V

Response Time

≤1ms

Short Circuit Protection

Yes

Electric Protections Yes
Temperature Limits

-20 ~+70°℃

Storage temperature and humidity

-40 ~ +80℃ 95% RH

Light Immunity

>100,000Lux

Protection Degree

En60529 IP65

EMC

EN 12015, EN 12016

Certification CE
Connection Type

PVC Cable



CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts 0

CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts 1



CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts 2

CE Elevator Leveling Slot Sensor Pnp Or Npn For Elevator Parts 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
